Backpack #1 - Informationthread


Recommended Posts

Under construction

In this thread you will soon be able to post information about the individual backpacks. Original pictures, worth knowing, found parts and so on. It should help you build backpacks that are as accurate as possible.

  • Upvote 1
Link to comment
Share on other sites

  • 1 year later...

Here the Parts, i used and know:


As with every pack, the basis is a Karrimor Tot-em-Senior frame.

1. For the Filter, i used an electronic box in the dimensions: 150 . 95 x 35 mm

2. blue grey bottle

3. Two Sanding Pads / Backing Pads with 115 mm diameter

4. Brexton Box

5. Seed Trays. The upper with 3 Rips, the lower with 5 Rips

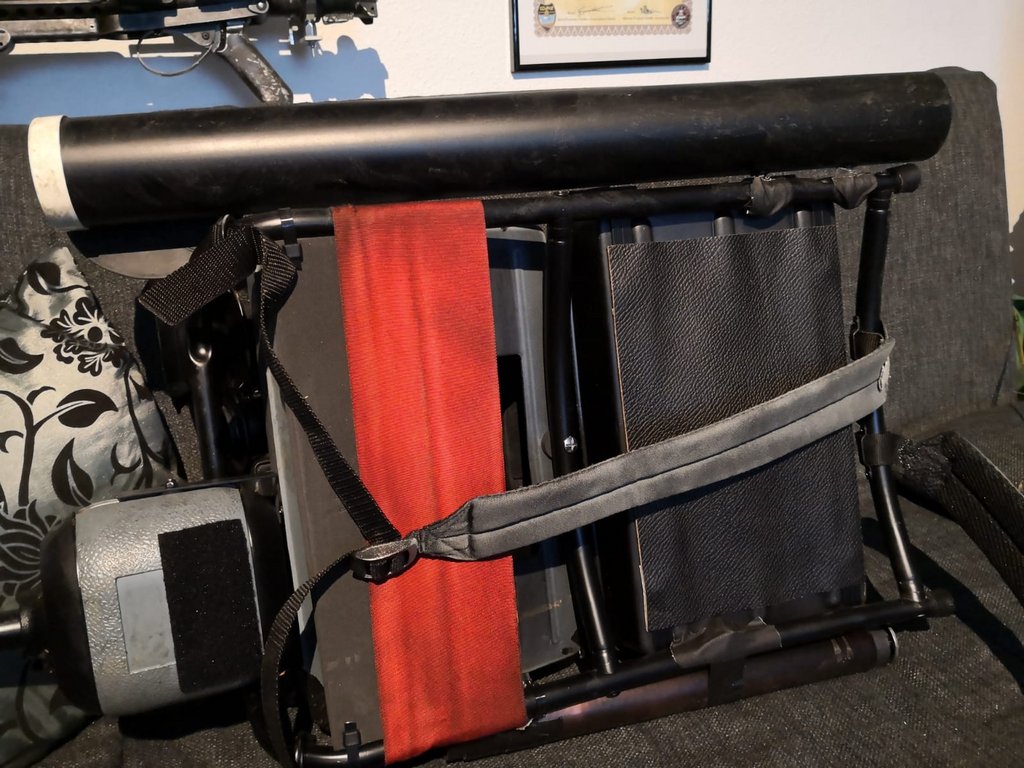

6. Mortar Tube: this part is originally a black plastic drain pipe for rainwater, the outside diameter is about 6,9 cm and the wall thickness is about 2mm. They are easy to source in the UK but hard to find in other countries, e.g. Germany

7. Shires Syphon - UP90

8. Radar Dish ( Lid from Pitcher, Mod. 874 (Tupperware)

9. Sonix or Northstar Radio

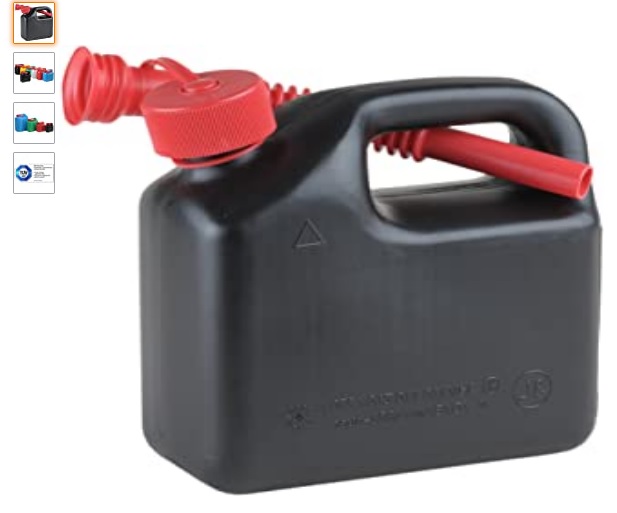

10. 3L - Petrol Kanister

11. Giostyle Safari 600 bottle

12. Toilet Plunger Cap - Large

Link to comment
Share on other sites

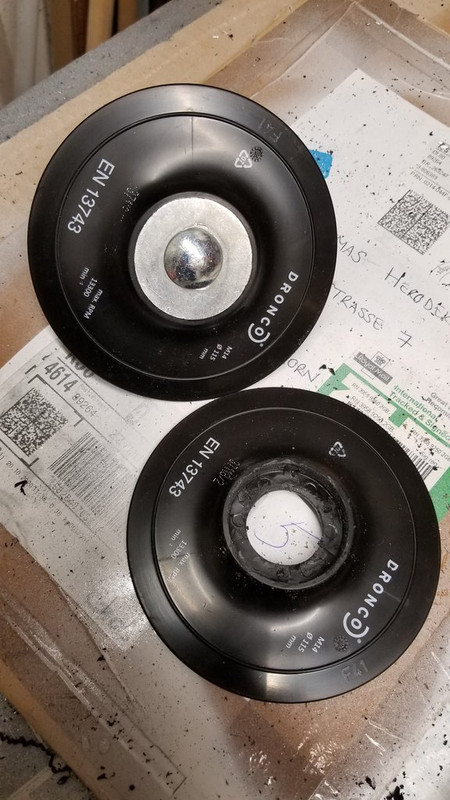

Sanding Pads:




Other Parts:





The white ABS details are the same as you find them on the thermal detonator of the regular stormtroopers. While the original plastic drain pipe is shiny, the ones on the screen-used packs seem to be painted black with a satin finish.

Link to comment
Share on other sites

This topic is now closed to further replies.
